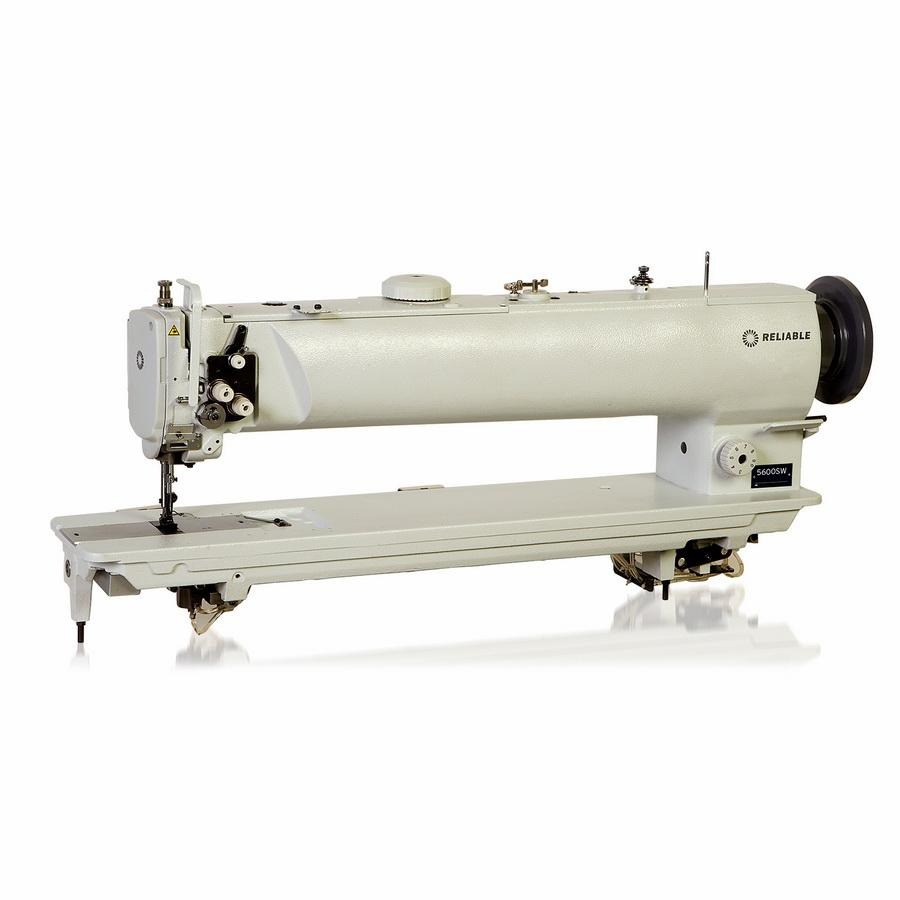

Reliable 5600SW 25 Inch Walking Foot Sewing Machine with Table and Motor

For medium to heavy weight fabric that requires a longer bed plate we recommend the 5600SW with top and bottom feed and upper feed adjustment dial for easy settings.

Quality You Can Count On

For sewing leather, upholstery, canvas and synthetics there is no better solution than the 5600SW. With safety clutch, drop in bobbin and automatic oiling, the 5600SW offers the whole package. The consumer friendly engineering of the 5600SW also features low noise and vibration design, outstanding build quality and reliability.

Needle Positioner

The needle positioning feature automatically stops the needle in the up or down position, eliminating the need for the operator to manually reach over to turn the hand wheel.

Top Load Bobbin

To assist with long seams and frequent bobbin changes, the 5600SW is equipped with a top loading bobbin.

Upper Feed Adjustment

For heavier seam clearance, a step adjustment from a minimum of 2mm to a maximum of 6mm.

Built-In Bobbin Winder

For added convenience, the bobbin winder on the 5600SW is built-in to the front of the machine head.

Stitch Dial Regulator

The stitch dial provides a simple adjustment (0-9 mm) for the length of the stitch.

Bobbin Thread Cutter

Conveniently cut the bobbin thread with the supplied thread cutter.

Reverse Level Mechanism

Creating the perfect back tack is easy with the 5600SW's reverse lever mechanism.

Automatic Safety Clutch

If thread or a needle should get stuck in the hook assembly, the safety clutch will automatically disengage the hook driving mechanism, ensuring there is no damage to the the machine or the hook.

600SM Servomotor

Getting the performance you want out of a sewing machine requires the right motor. The fourth generation SewQuiet 6000SM servomotor is the benchmark in the industry.

Superior Stand

Others skimp on the stand components, we don’t. We use only 100% plywood in our tabletops (not cheap particle board) and our K-legs are made from heavy-duty 3/32" steel.

Reliable 120TL Task Light

This LED light features a magnetic base that allows it to easily adhere to your sewing machine or metal workstation.

Other Great Features

• Needle positioner with synchronizer
• 1,800-RPM
• Large capacity hook
• Safety clutch
• SewQuiet DC servomotor with synchronizer
• Heavy-duty H-legs and table (21.5" x 62" x 1-3/4")
• Large hand-wheel
• 16mm foot lift (knee)
• Single row feed dog
• Automatic lubrication
• Instruction / parts manual included
• Tool kit, drawer, thread stand included
• Individually tested and sewn off before shipping

Specifications

Maximum Sewing Speed

1,800 RPM

Stitch Length

0-9 mm

Needle Bar Stoke

36mm

Pressure Foot Lift

By hand 9mm

By knee 16mm

Needle System #

135 x 17

Thread Take Up Stroke

70mm

Upper Feed Adjustment Dial

Yes

Feed Dog

Single row

Hook Type

Rotary - auto lubricated

Lubrication

Automatic

Stitch Dial Regulator

Yes

Reverse Lever

Yes

Manufacturer's Warranty

Reliable limited 1 year
