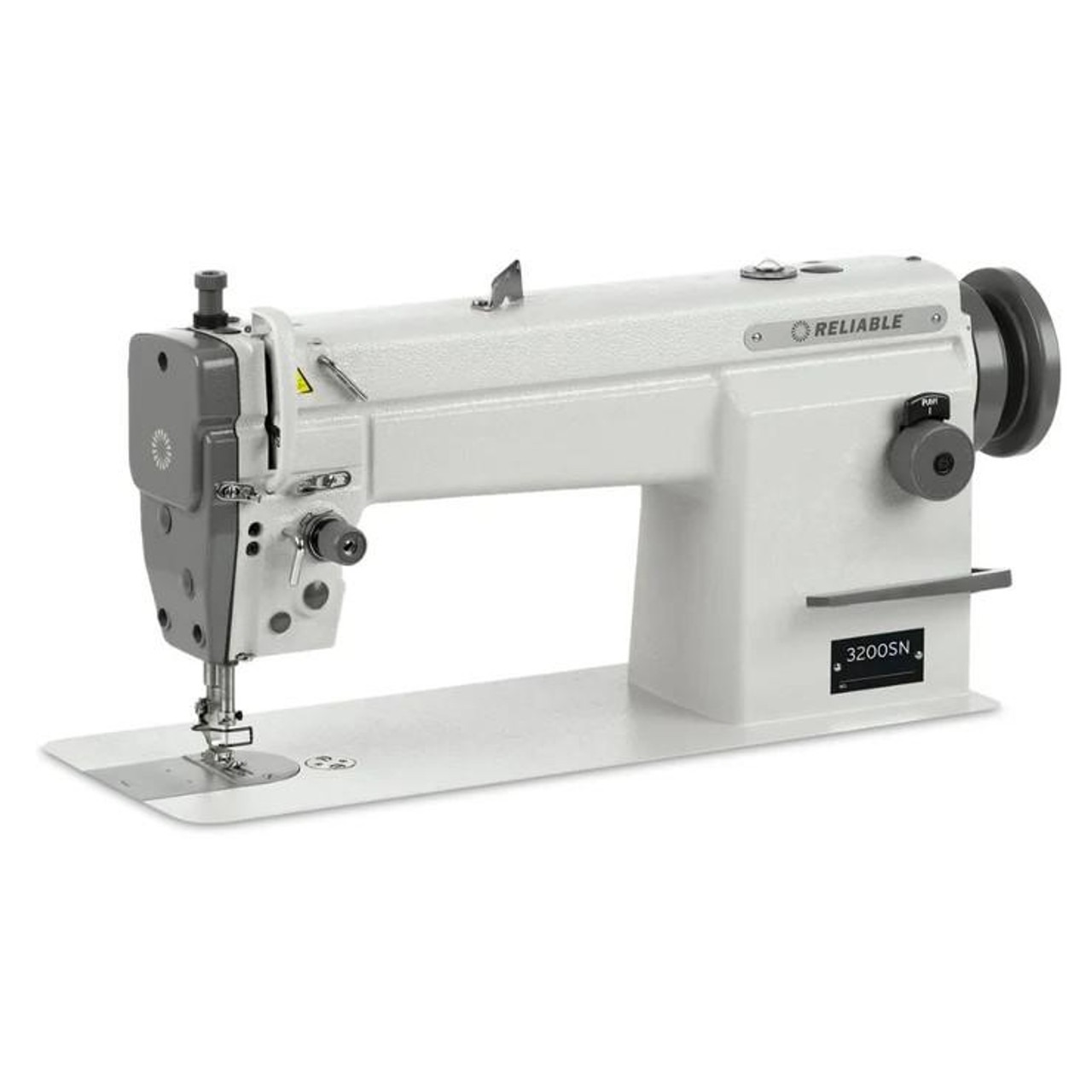

Reliable 3200SN Single Needle Needle Feed Lockstitch Industrial Sewing Machine Complete with Fully Assembled Table, Stand, and Servo-Motor

When sewing multiple ply’s of fabric together, or for top stitching; if the fabric is slippery, or if puckering is an issue, the 3200SN is the right machine for the job. It is suitable for sewing from light to medium weight fabric.

QUALITY YOU CAN COUNT ON

There are many single needle machines to choose from. The 3200SN offers the whole package. Low noise and vibration design, outstanding build quality and reliability and the industries #1 DC servomotor.

Key Features

Stitch Dial Regulator

The stitch dial provides a simple adjustment (0-5 mm) for the length of the stitch.

Reverse Lever Mechanism

Creating the perfect back tack is easy with the 3200SN’s reverse lever mechanism.

Specifications

• Maximum sewing speed 5,000 RPM
• 0-5mm Stitch Length
• 31.8mm Needle Bar Stroke
• 5.0mm Pressure foot lift by hand
• 11.0mm Pressure foot lift by knee
• 135x5/135x7/dpx5 Needle System
• Rotary - Auto Lubricated Hook
• Automatic Lubrication
• 1 Year Warranty

Other Great Features

• 5,000-RPM high-speed operation
• Automatic lubrication with pump
• Instruction / parts manual included
• Tool kit, drawer, thread stand included
• Individually tested and sewn-off before shipping

SewQuiet 6000SM Brushless DC Servomotor INCLUDED

BEAUTY AND BRAWN

The SewQuiet 6000SM brushless DC servomotor is a modern-day marvel of ingenuity and technology, crafted and designed to exceed your expectations. This is the only servomotor to incorporate a full 12-coil (vs. 6 or 9) design. This provides unparalleled power and torque, the kind of torque that’s needed to work with the toughest materials. And for those looking to add a synchronizer to your motor, it’s now available as a low cost stand-alone option.

CALIBRATED CONTROL

The SewQuiet 6000SM represents the fourth generation of Reliable’s energy saving servomotor innovation. Precision step-by step stitching for detailed sewing, the ability to plug in a grounded light directly to the rear of the motor, UL/CSA certified electrical components and the total silence that gives the SewQuiet its name… the new 6000SM takes everything we’ve learned about motors over the past 60 years to new heights.

Key Features

More Coils = More Torque

This is the only servomotor to incorporate a 12-coil (vs. 6 or 9) design, providing the torque you need to get through heavier sewing tasks with ease.

550W Servomotor

The SewQuiet’s servomotor is the powerhouse behind every 6000SM, providing revolutions up to 6000RPM.

Variable Speed Control

Built-in push button on/off switch and variable speed control. Easy to read LED display.

Built-In Light Receptacle

The 6000SM is equipped with a fused and grounded receptacle to plug in an UberLight LED light or a light of your choice.

Belt Adjustment

Regardless of the brand of sewing machine you are mounting the SewQuiet 6000SM to, the belt tensioning device is simple and easy to set-up.

PCB Insulation

Inside the 6000SM you will find PCB insulation that houses and protects the internal electrical components of the motor.

Strain Relief

This smart safety feature prevents pullout and wear on the electrical cord.

No Extra Charge

And the best part of the new SewQuiet 6000SM? It's included at no additional cost with all Reliable industrial sewing machines.

Simple Setup

Everything you need to get your SewQuiet 6000SM up and running is supplied in the box.

Specifications

• Electrical: 120V
• H.P.: ¾
• Power: 550W
• Power Consumption: 4.5 amps
• Speed Control: Digital
• Pulley Type: Aluminum
• Pulley Size: 60mm
• On-Off Switch: Built-in
• Accessories: Treadle rod mounting hardware, belt guard
• Dimensions: 9.75" x 9" x 6"
• Net Weight: 7.8 lb - 3.5 kg
• Shipping Dimensions: 13.2" x 11.4" x 8"
• Shipping Weight: 10 lb - 4.5 kg
• Manufacturer's Warranty: Limited 1 year
